Squid Proxy is a great tool that allows us to do multiple things; one of them is to function as a forward proxy, and with the use of ACLs, we can filter sites using the SNI.
installation

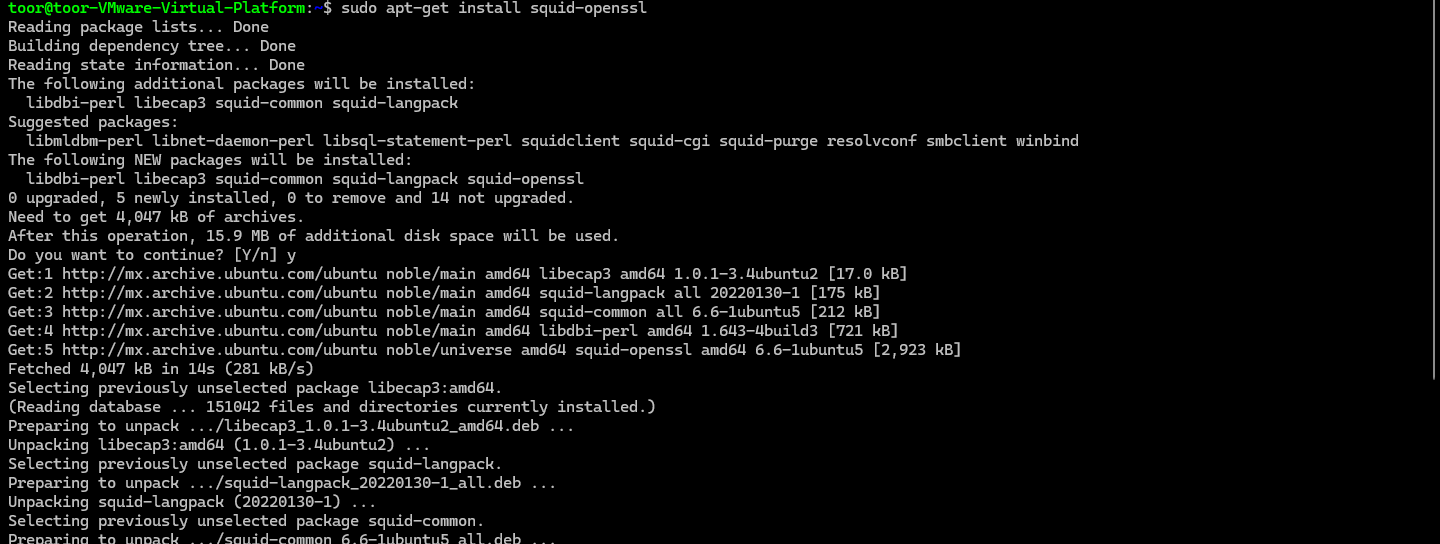

Squid proxy is installed via apt-get. The squid-openssl version is of interest to us since it contains ssl-bump. If our distribution does not include squid-openssl, it must be installed manually.
sudo apt-get install squid-openssl
We generate the SSL certificates, remember they must be in /etc/squid/ssl; otherwise, Squid will not trust the certificate.
cd /etc/ssl/
sudo openssl ecparam -name prime256v1 -genkey -noout -out sslsquid.key
sudo openssl req -x509 -days 365 -nodes -key sslsquid.key -out sslsquid.crt
For Squid Proxy 6.0, it gives the following error if it’s not installed in /etc/ssl/.
× squid.service - Squid Web Proxy Server
Loaded: loaded (/usr/lib/systemd/system/squid.service; enabled; preset: enabled)
Active: failed (Result: exit-code) since Fri 2024-06-07 05:48:16 CST; 4s ago
Duration: 25min 6.288s
Docs: man:squid(8)
Process: 4522 ExecStartPre=/usr/sbin/squid --foreground -z (code=exited, status=1/FAILURE)
CPU: 54ms
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: 2024/06/07 05:48:16| Finished. Wrote 0 entries.
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: 2024/06/07 05:48:16| Took 0.00 seconds ( 0.00 entries/sec).
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: 2024/06/07 05:48:16| FATAL: No valid signing certificate configured for HTTPS_port [::]:3135
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: 2024/06/07 05:48:16| Squid Cache (Version 6.6): Terminated abnormally.
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: CPU Usage: 0.060 seconds = 0.047 user + 0.013 sys
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: Maximum Resident Size: 74752 KB
Jun 07 05:48:16 toor-VMware-Virtual-Platform squid[4522]: Page faults with physical i/o: 0
Jun 07 05:48:16 toor-VMware-Virtual-Platform systemd[1]: squid.service: Control process exited, code=exited, status=1/FAILURE
Jun 07 05:48:16 toor-VMware-Virtual-Platform systemd[1]: squid.service: Failed with result 'exit-code'.
Jun 07 05:48:16 toor-VMware-Virtual-Platform systemd[1]: Failed to start squid.service - Squid Web Proxy Server.
To configure Squid, we do the following:
cd /etc/squid/
sudo nano squid.conf

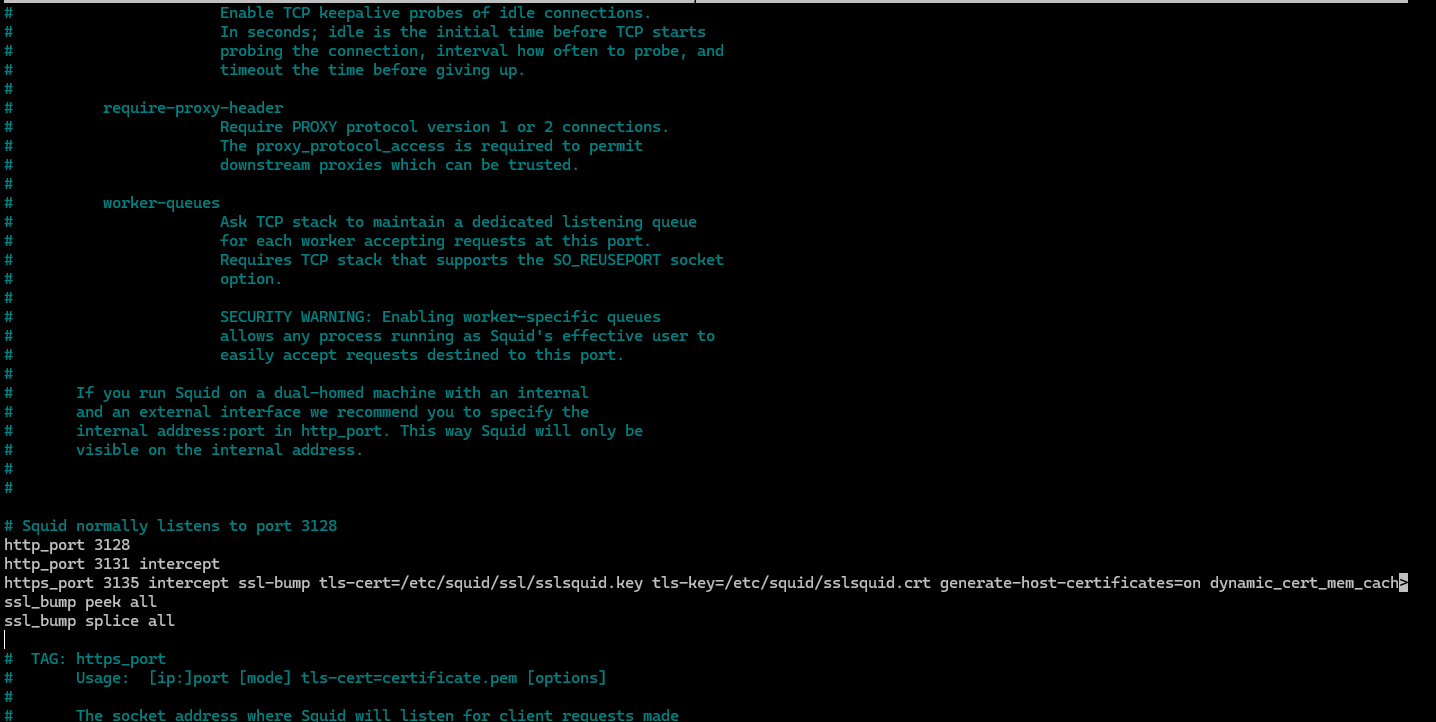

To configure Squid, we do the following:
http_port 3131 intercept
https_port 3135 intercept ssl-bump tls-cert=/etc/ssl/sslsquid.crt tls-key=/etc/ssl/sslsquid.key generate-host-certificates=on dynamic_cert_mem_cache_size=16MB
http_access allow localnet

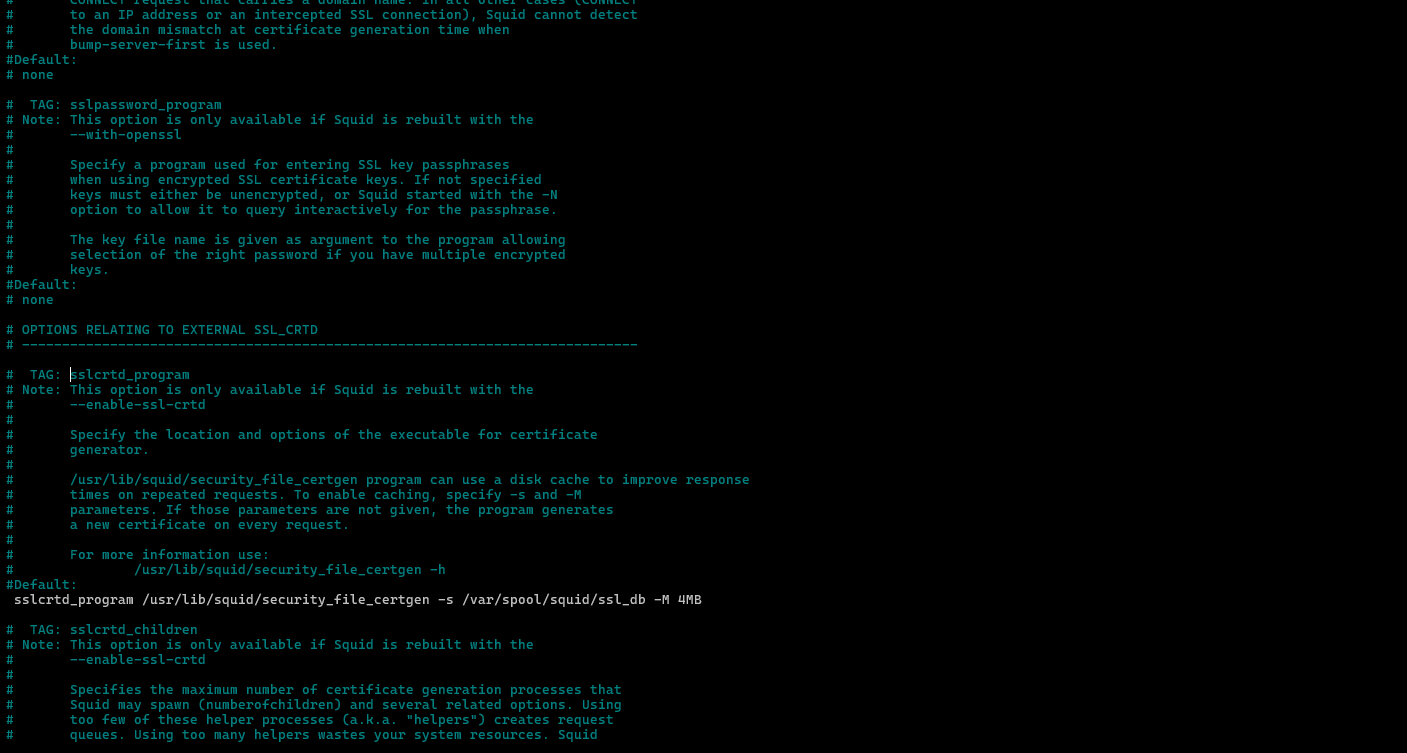

Uncomment the following line.
#Default:
sslcrtd_program /usr/lib/squid/security_file_certgen -s /var/spool/squid/ssl_db -M 4MB
We have to configure iptables so that the traffic goes through squid proxy
sudo iptables -t nat -I PREROUTING -p tcp -m tcp --dport 443 -j REDIRECT --to-ports 3135
sudo iptables -t nat -I PREROUTING -p tcp -m tcp --dport 80 -j REDIRECT --to-ports 3131
sudo iptables -t nat -A POSTROUTING -o ens33 -j MASQUERADE
sudo sysctl -w net.ipv4.ip_forward=1
Access Controls
We create a file where the domains to be blocked will be
sudo mkdir /blockwebsites
cd /blockwebsites
sudo nano list1
We add example.com as an example.
example.com
Block web site via SNI (Server Name Indication)
sudo nano /etc/squid/squid.conf
We add the following at the end of the configuration.
acl monitoredSites ssl::server_name "/blockwebsites/list1"
ssl_bump terminate monitoredSites
ssl_bump peek all
ssl_bump splice all
In this case we do not want to interfere with the original certificate we use ssl_bump peek all ssl_bump splice all
https://wiki.squid-cache.org/Features/SslPeekAndSplice

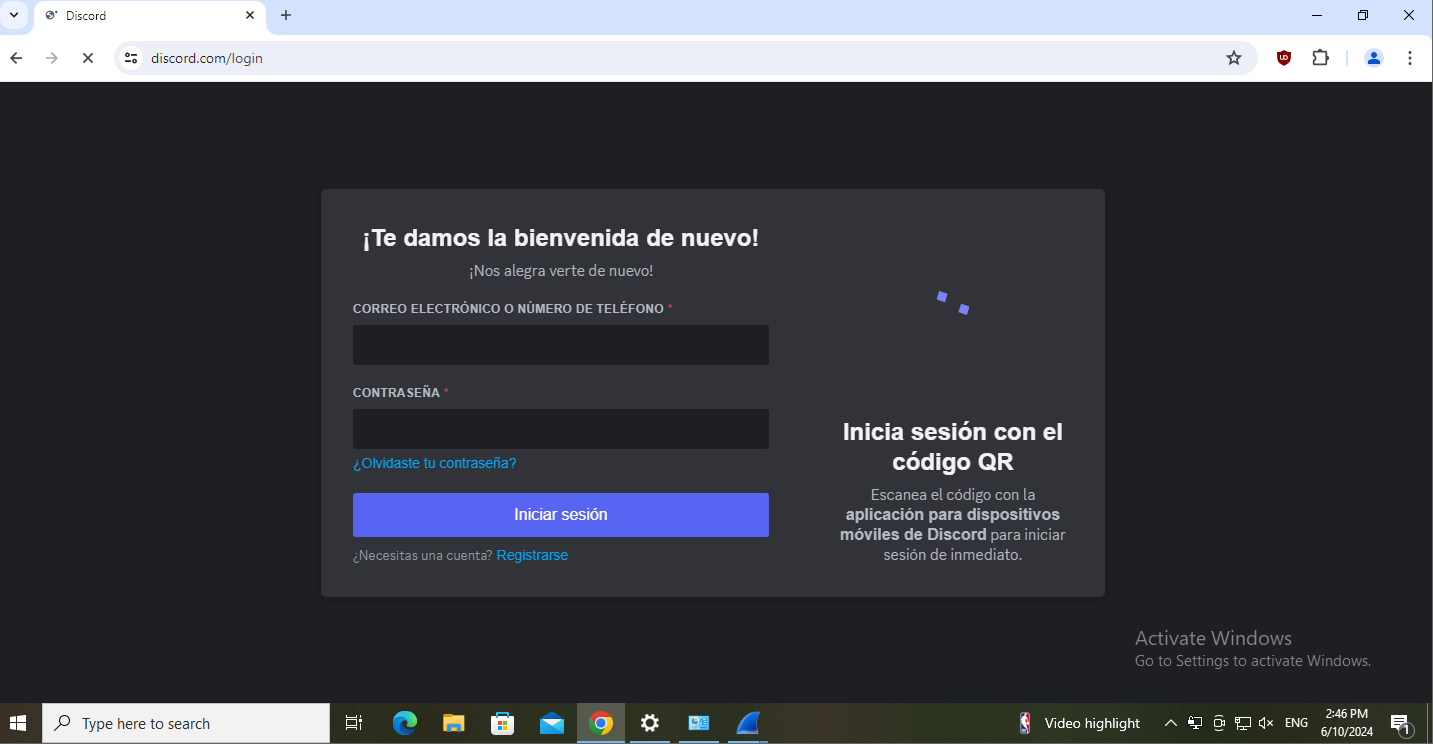

The website is working without installing any certificate on the client
Block QUIC using the firewall policy.
Squid Proxy does not support QUIC, so we have to disable it.
sudo iptables -I FORWARD -p udp --dport 443 -j REJECT --reject-with icmp-port-unreachable
